Qatar Airways A380
Upper Lounge Light Feature
Led the on-time delivery of the Mechanical Engineering Package for Qatar A380 Lounge Bespoke Light Feature
Date
Background
As part of a larger project created in partnership with Qatar Airways and Priestman Goode, I was responsible for the Engineering Package delivery for the 3m x 2m Light Feature.
Designing for Compliance
The light feature’s unusual 3 m × 2 m size and bespoke form required close collaboration with the Certification and Stress teams to define an appropriate means of compliance for its installation in the A380 upper-deck lounge. The compliance scope centred on ATA 25 (Equipment and Furnishings) for the assembly and its retention, ATA 33 (Lights) for the lighting installation, and interfaces with ATA 24 (Electrical Power) and ATA 35 (Oxygen). Relevant airworthiness considerations included structural loads, factors of safety and substantiation under CS 25.301, 25.303, 25.305 and 25.307; emergency-landing loads and retention under CS 25.561 and 25.789; and cabin-material flammability under CS 25.853 and the applicable Appendix F provisions. System integration also required consideration of equipment function and installation under CS 25.1301, system safety under CS 25.1309, and electrical installation and circuit protection under CS 25.1353 and 25.1357. The design needed to preserve passenger oxygen-mask availability and deployment in accordance with the applicable CS 25.1447 requirements. Working across these interfaces helped align the mechanical design, attachment strategy, safety features and maintenance access with the certification approach. The precise requirements and means of compliance depended on the aircraft’s approved certification basis and the scope of the modification.
Design & Development
Using hand sketches and Catia, a modular design was defined around ease of installation (tie-rods and pins), maintenance (LRU access) and means of compliance.
The light shade itself was one or the more complex parts, required to be made from 2-part spun aluminium sheet into a venturi shape, laser cut pattern and finishing in Rose Gold.
Test Installation & Feedback

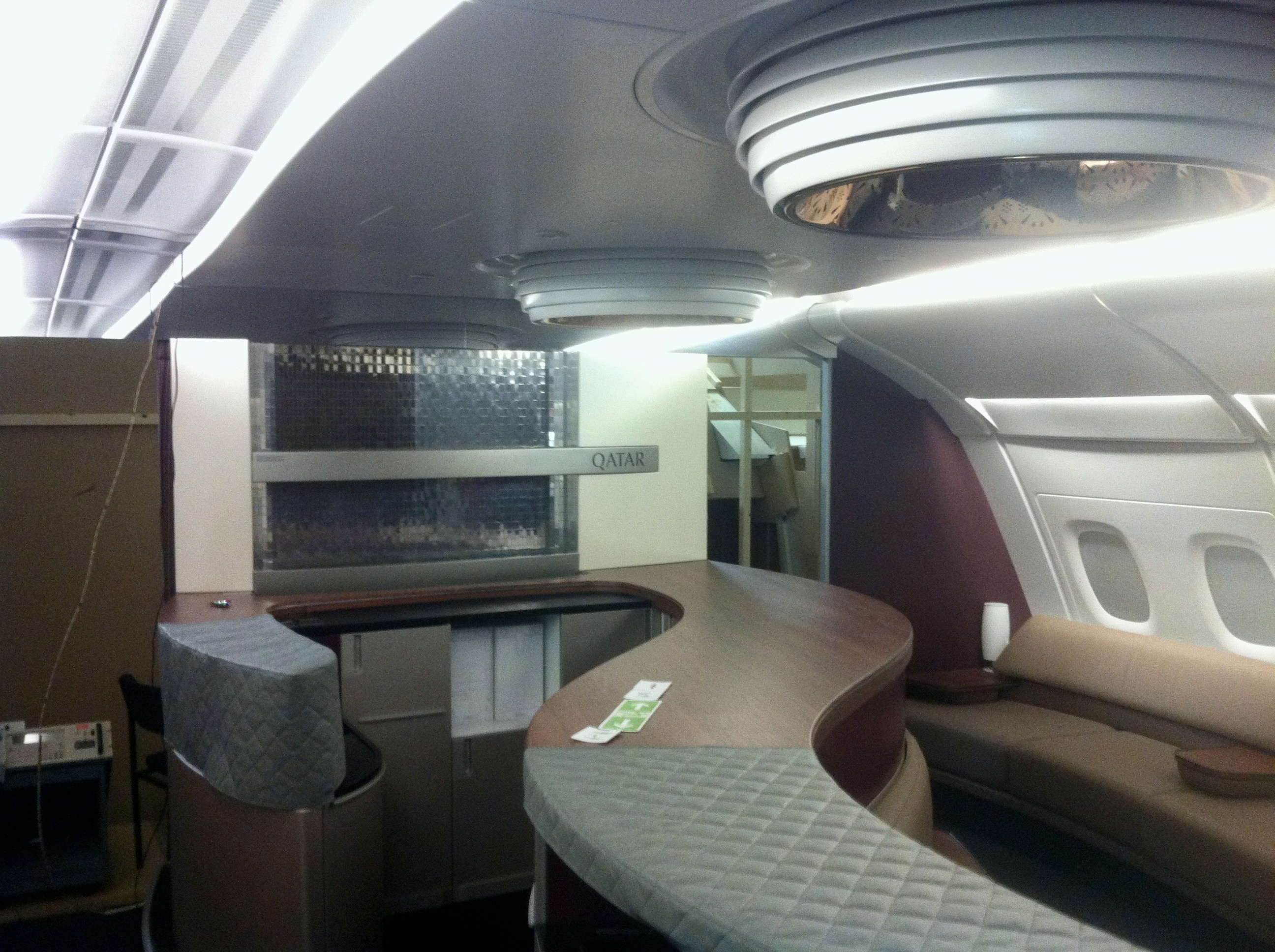

We created a complete A380 lounge mock-up where we could test install the light feature in context with the rest of the lounge furniture. Overall the feedback was positive, however we were required to add an rework with the locking feature of the light. We needed to visually show that the latch was engaged, this was done via a red strip on the handle. If the Service Technician can not see red, then the handle is properly engaged and therefore fixed into position.

Final Thoughts
One of the more beautiful projects I have been able to work on, where I was able to encounter ‘metal spinning’ DFM and designing for ‘no-visible screw heads’ to create a truly special, certifiable, unique piece of aircraft interiors history.
